Luxury Prefabricated Container House K Stype Prefabricated House Pre Fabricated House

  Items

  Specification

  Main Steel Frame

  Column

  Q235, Q345 Welded H Section Steel

  Beam

  Q235, Q345 Welded H Section Steel

  Secondary Frame

  Purlin

  Q235 C and Z purlin

  Knee brace

  Q235 Angle Steel

  Tie Rod

  Q235 Circular Steel Pipe

  Brace

  Q235 Round Bar

 Vertical and Horizontal Support

  Q235 Angle Steel, Round Bar or Steel Pipe

  Maintenance system

  Roof Panel

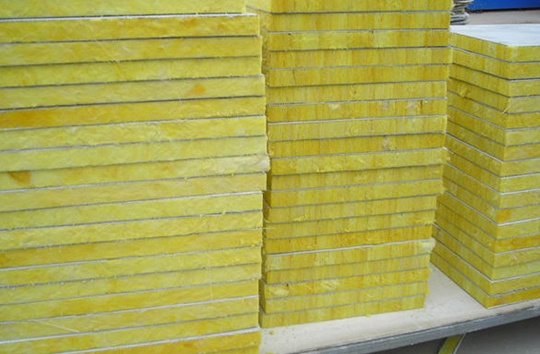

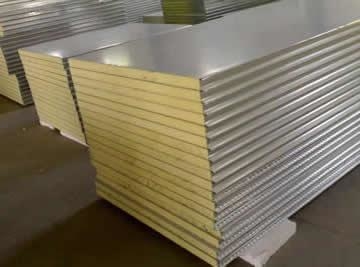

  EPS Sandwich Panel / Glass Fiber Sandwich Panel /Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet

  Wall Panel

 Sandwich Panel / Corrugated Steel Sheet

  Accessories

  Window

  Aluminiumn Alloy Window/PVC Window/Sandwich Panel   Window

  Door

  Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door

  Rainspout

  PVC

  Live load on Roof

  In 120kg/Sqm (Color steel panel surrounded)

  Wind Resistance Grade

  12 Grades

  Earthquake-resistance

  8 Grades

  Structure Usage

  Up to 20 years

  Temperature

  Suitable temperature.-50°C~+50°C

  Certification

  CE, SGS, ISO9001:2008, ISO14001:2004

  Finishing Options

  Vast array of colors and textures available

  Paint Options

  Alkyd paiting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized.

Project Name

low cost steel frame prefab house plans portable house shed building

Size

total length and width, roof and eave height, roof pitch, etc

Roof and Wall

option: EPS, fiber glass, rock wool or PU sandwich panel

Door and Window

PVC or Aluminum alloy; sliding door or rolled door

Column and Beam

option:hot rooled or welded C section,painting or galvanized

Purlin

option:C-Section or Z-section

Local Climate

1.wind speed

2.snow load

3.rain quantity

4.earthquake grade if have

More details is preferred.

Drawing

 1. according to clients' drawing

 2. design as per clients' dimension and requests

Package

Naked loaded in shipping container or as per requests.

Loading

 20 GP,  40HP, 40 GP,  40 OT
